Surface Electrodes - Attached Leads

Cadwell Disp. Surface Electrodes with Lead Wires

Four disposable surface electrodes are pre-gelled and attached to wires in red, white, black, and green. Four mil carbon film, silver/silver chloride coated. Each box contains 12 individually sealed sets of 4 for singles and 24 individually sealed sets of twisted pairs.

Hydrogel is formulated so it stays on the patient better and is still movable.

Single patient use only.

* For IONM use, Cadwell highly recommends twisted pairs over individual singles for signal clarity.

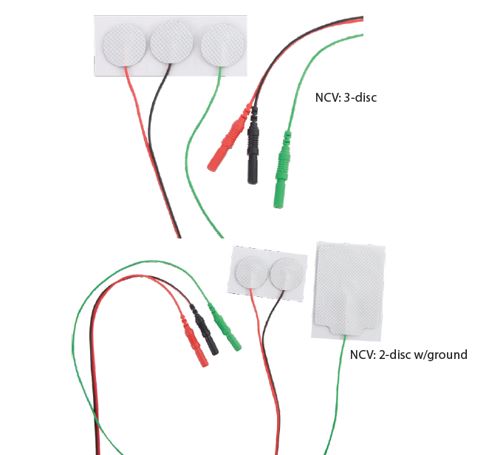

Disposable NCV Electrode Pack

The Cadwell disposable nerve conduction velocity (NCV) kits are available in a 3-disc pack and a 2-disc / 1 ground pad per pack, each box will contain 24 packs. The Cadwell NCV 3-disc and 2-discs + ground pads are color coded to match amplifier inputs. The red & black wires are paired in parallel to help reduce environmental noise and shock artifact and can be separated as needed. Electrodes are pre-gelled 20mm Ag/AgCL ideal for nerve conduction, R-R Interval, autonomic and evoked potential studies.

Single patient use only.

Cadwell® Disp. Surface Electrodes with Leads

These electrodes are commonly used as either stimulation or recording electrodes. Each pouch contains 2 pairs of electrodes. One pair has red/black color leads and the other pair has blue/green leads. The soft, parallel leads lay flat against the body when applied and the leads are easy to separate if needed.
